May 29, 2025

Testing Rig for 12 Speed Gearbox Progress #193

Nothing Changes. Still many hurdles to Jump over But. Need to celebrate the +++ when they turn up. Eventually after much Brain Storming & PRAGMATIC REALISIM  debate.

Progress toward CMR GEARBOX testing rig for  W 2 12 Spd Gearbox gear changing with fully data recorded sensor system. Approximately 32  sensors to tell us what is exactly what is happening in gearbox during shifting sequence. Motec M150 ECU and other to data log everything. Now Pressure is on CMR Team to finish  wiring loom & Data Loggers to step up.

Thanks to Amazing Greater CMR Team

Including Initially Steve Goodare & others for brain storming ways to make Changes that hopefully work.

2nd Attachment. Thanks to Richard Mason for organising eclectic motor to gearbox  adaptor  https://www.masontool.co.nz/

3rd to 5th Attachments. Thanks to Nick / Kerry Jones engineering  for delicate machining of sensor holes into gearbox & other part https://www.kje.co.nz/

Thanks to Iscar Team for machining changes to Dog Clutch  system parts coming tomorrow https://iscar.co.nz/ https://iscar.co.nz/rig

1st Attachment. Mark Bradly making simple but effective.

Will report on other Progress continuing on many other fronts.

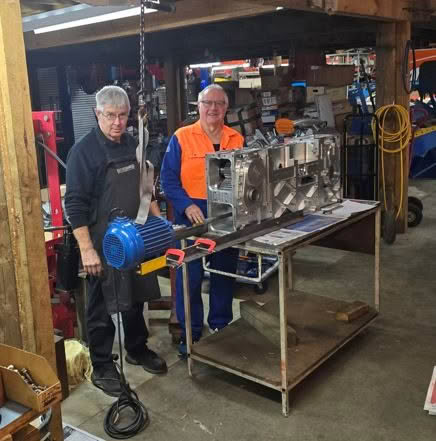

Gearbox Testing Mark Frame Jig B

Gearbox Testing Mark Frame Jig B

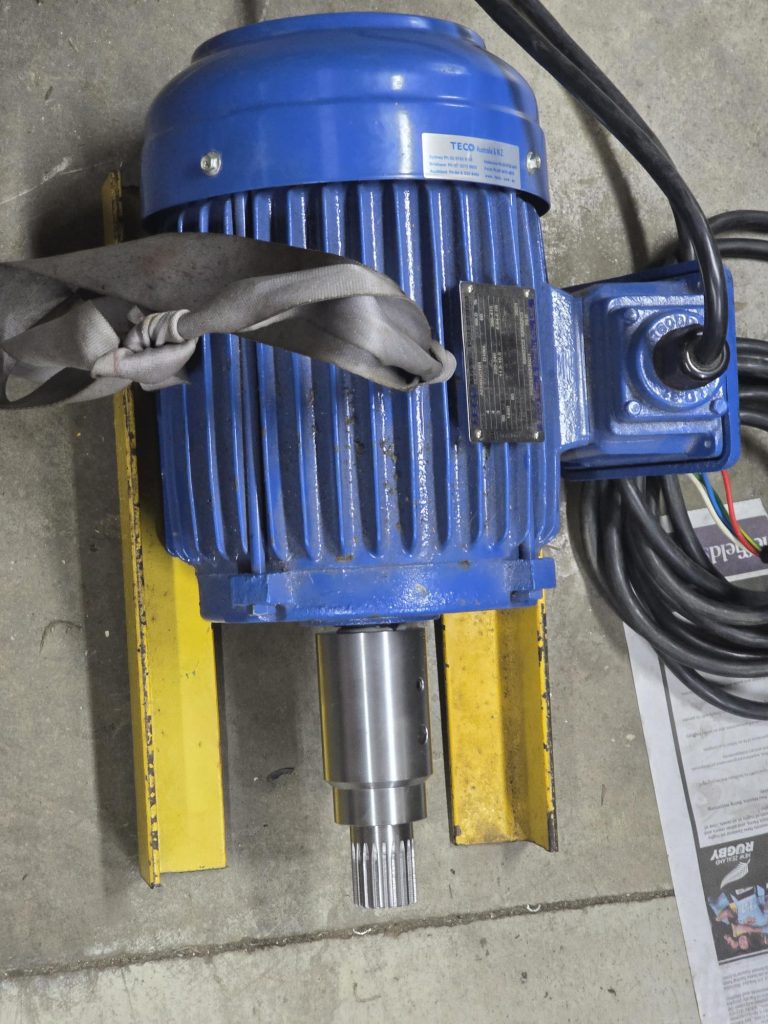

W 2 12 Spd To Electric Motor Adaptor

Wairau 2 12 Speed to Electric Motor Adaptor

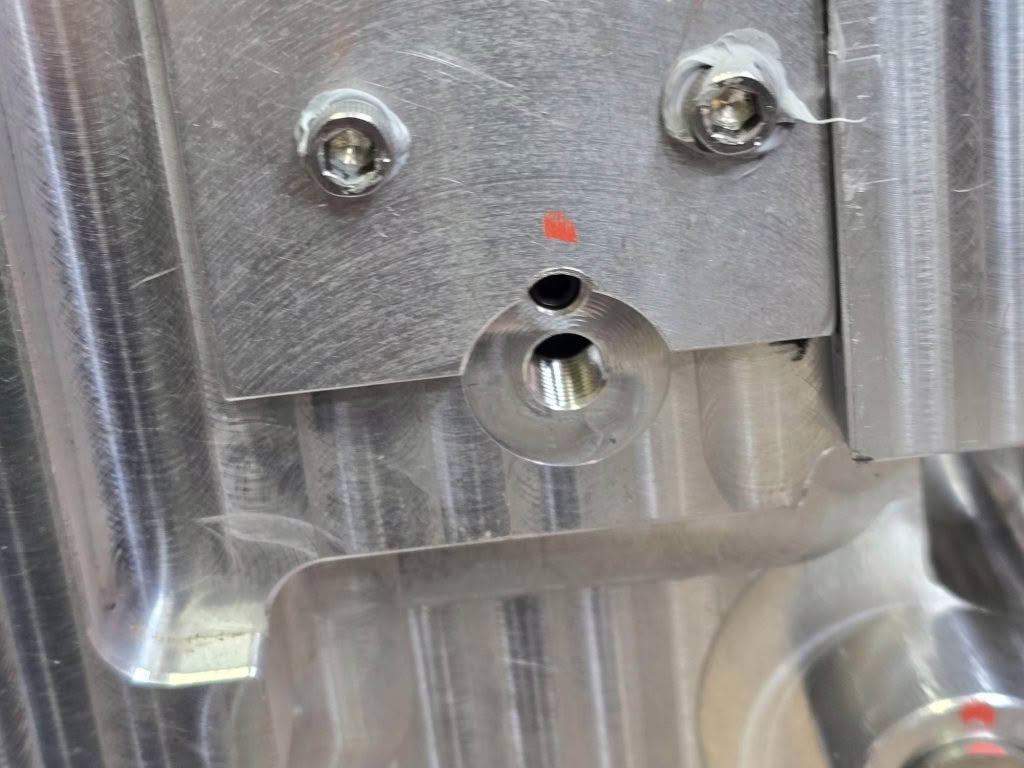

20250528 161935

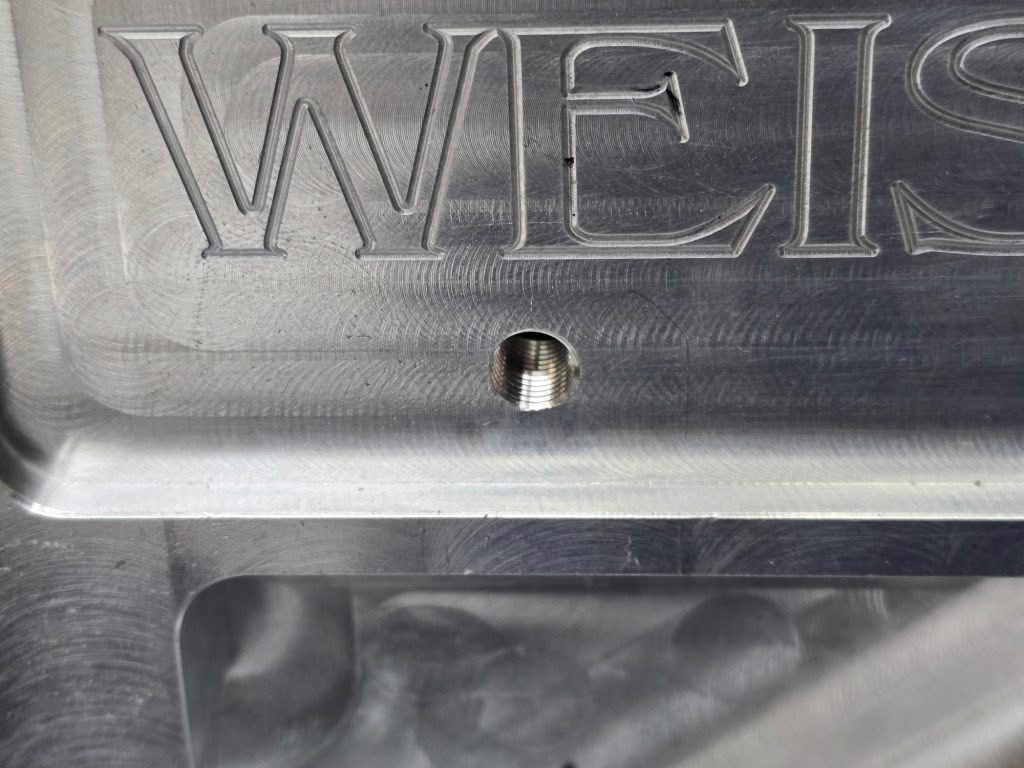

20250528 161953

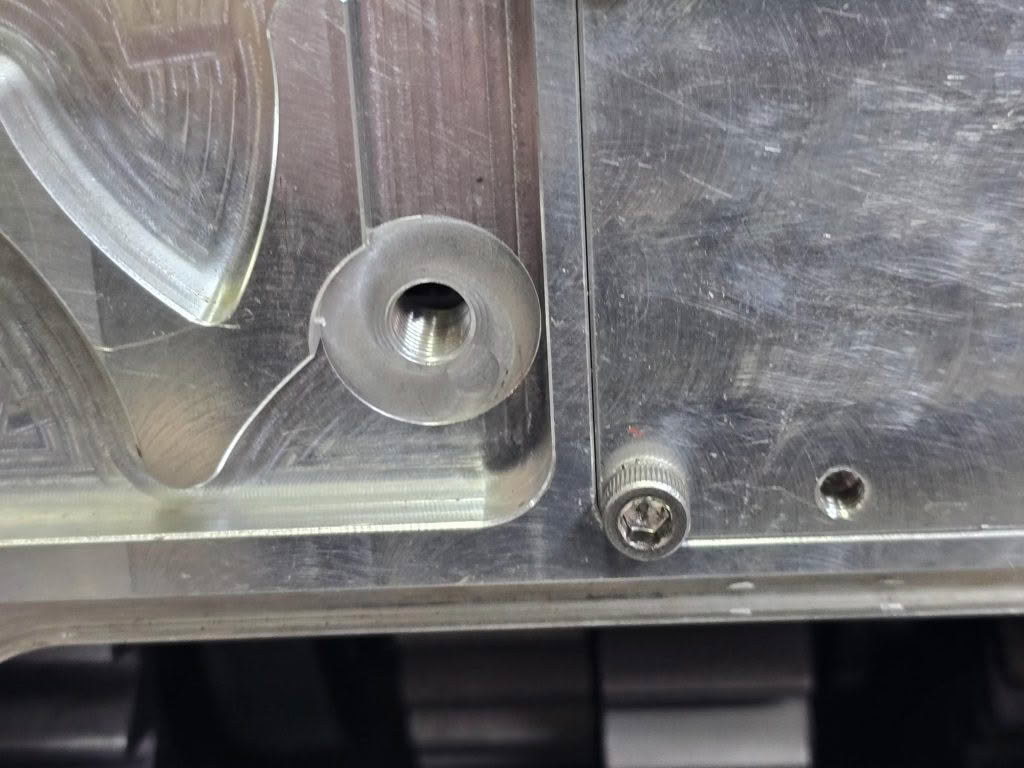

20250528 161941

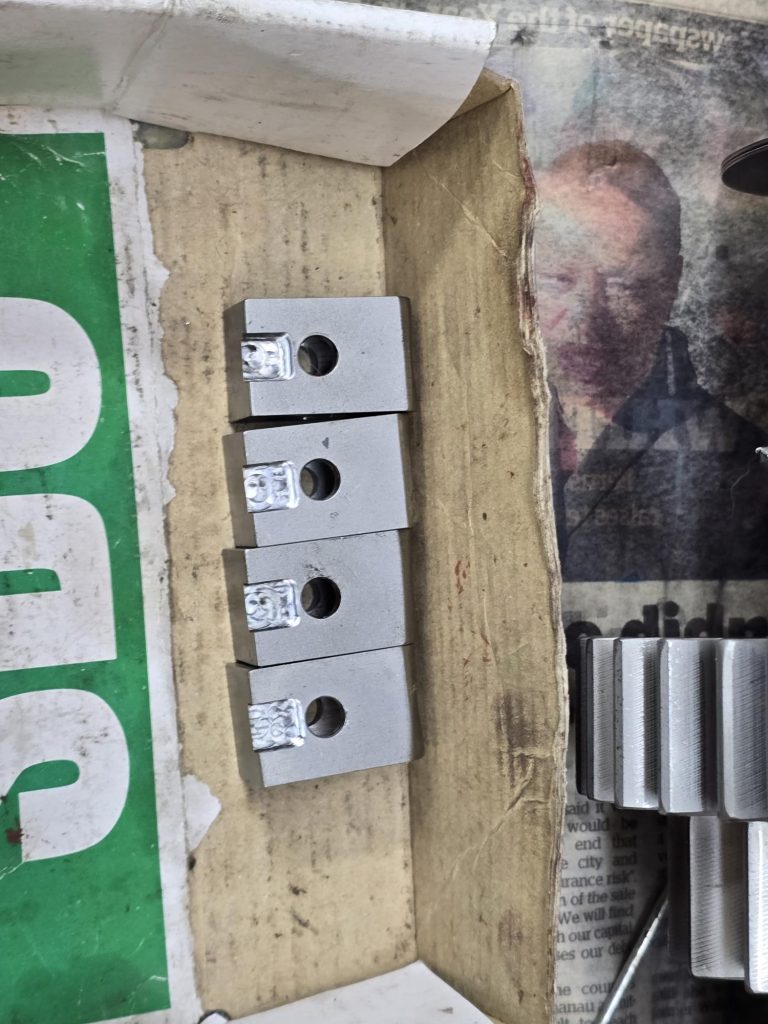

20250528 161919

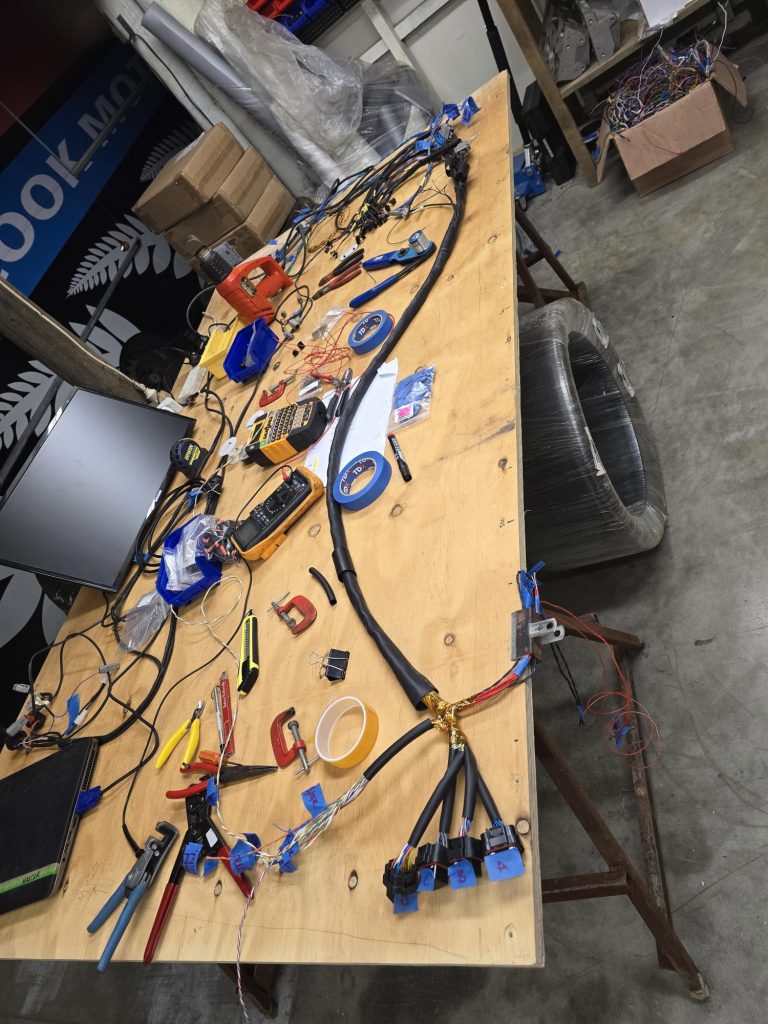

Wiring Loom Gearbox W2 For Gear Shifting

Wiring Loom Gearbox W2 for Gear Shifting.
